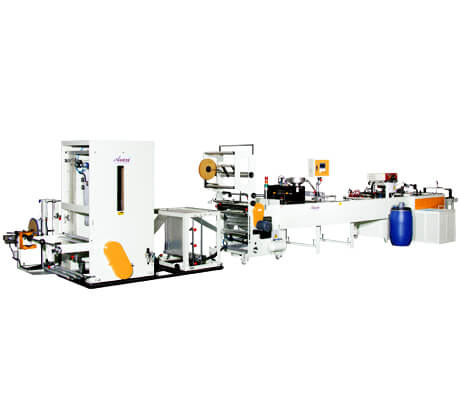

AUTOMATIC SLIDER TAPER BAG MAKING MACHINE( TB-800SZ)
PHOTO - Please Click Image to Enlarge
The Machine Features
- Suitable for LDPE, PP OPP CPP BOPP and EVA.
- The slider zipper bag making unit begins from triangular folding unit with EPC, Tension control unit with automatic calculation, zipper attachment, automatic slider inserter, gang puncher, ultrasonic stamping, precise triangular sealing, automatic scrape remove system, collector to wicketer windmill fully automatic in one process.
- Servo Driven is fast and precise.
- Servo motor cutting Control System.
- The unit uses PLC Control System.
SPECIFICATION

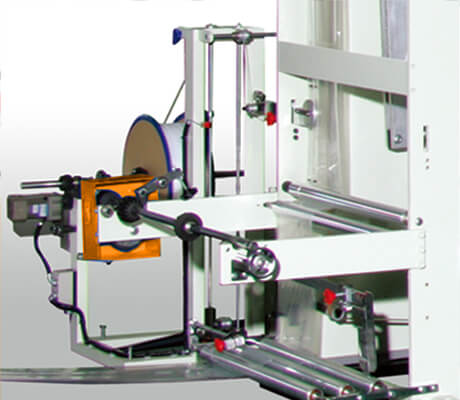

Zipper Applicator |
||
| Take-Up Motor | 1HP AC+Inverter | |
| Copper Attachment Knife | 2Pc | |
| Side Slitting Knife | 1 Set | |
| Zipper Storage Frame | 1 Set | |
Side Sealing Unit |
||
| Roll Width | 700mm | |
| Tension Control Unit | ||
| Main Motor | AC 2HP+Inverter | |

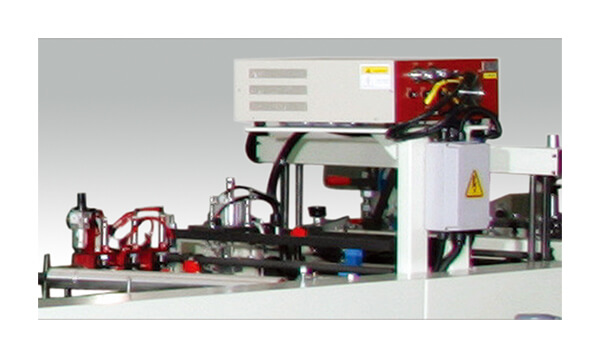

| Ultrasonic Stamping Unit | 2000W | |
| Copper Taper Sealing Knife | ||
| Photo Cell | German SICK x 1 Set | |

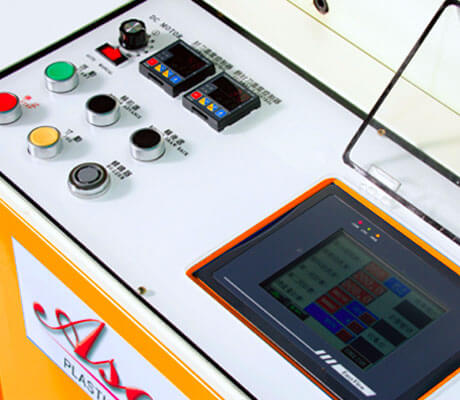

| HCI Touch Screen Interface | ||
| Feeding Method | 2000W Japan Servo Motor | |
| Collector | ||
| Total Power Required | 8 Kw | |
| Suitable for string like zipper profile | ||
Selective Equipment |
||
| White Tape Reinforcement Unit | Perforating Knife | |
| Varies Hole Punch Unit | Gusseting Unit | |

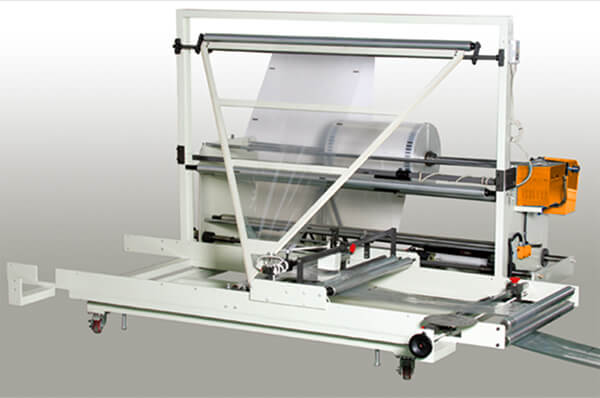

| Triangular Folding Unit with EPC | CE Self Declaration Modification | |
| Hanger Insertion Unit | ||
