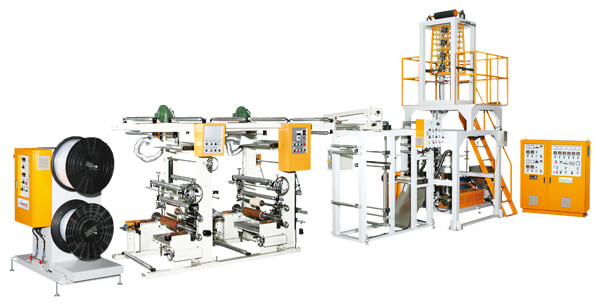

LDPE ZIPPER BAG MAKING MACHINE with ROTOGRAVURE IN LINE PRINTING MACHINE(AEZ-45/55+ARP800i)
PHOTO - Please Click Image to Enlarge
SPECIFICATION
Model |
AEZ-45 |
AEZ-55 |
| Applicable Material | LDPE | |
| Film Width (bag width) | 60~300mm | 200~500mm |
| Screw Diameter | φ45mm | φ55mm |
| Screw L/D | 30:1 | 30:1 |
| Screw/Barrel Material | Japan Made SACM-645 | |
| JS1 Gearbox | 1 SET | |
| Heater Capacity | 8 kw | 10 kw |
| Auto Thermo Control | 5 ZONE | 6 ZONE |
| Barrel Cooling System | 1/4HP ×2 | |
| Main Driving Motor | 15 HP+Inverter | 20 HP+Inverter |
| Two Layer Air Ring | Aluminum Alloy 1 SET | |
| Extrusion Film Speed | 8~15M/MIN | 8~15M/MIN |
| Air Blower with Inverter | 2 HP+Inverter | |
| Joint Unit | 1 SET | |
| Rubber Roll Width | 400 mm | 600 mm |
| First Pinch Roll | 1/2HP GEAR | |
| Second Pinch Roll | 1/2HP GEAR | |
| Double Winder | DC 1HP ×2 | |
| Machine Dimension | 5.6×1.8×4 M | 5.8×2×4.8 M |
| Selective Equipment | Varies Die | |
| Selective Equipment | AEZ25 mm Extruder | |
| ※NOTE: All are subject to change without notice. specifications and design characteristics shown in this catalogue | ||
